Mass College of Art Iron Guild Pour

Saugus Iron Works National Historic Site

Fathers Day, June 18, 2006



Today dawned hot and was forecast to only get hotter.  We headed off to the wilds of Sauagus MA to watch members of the Iron Guild conduct a demonstration pour of cast iron.  Much my delight when we got there we found a number of other NEMES members in attendance and a fine, if hot, time was had by all.

The Guild did a fine job of demonstrating and explaining the process of iron pouring and their efforts were very much appreciated.

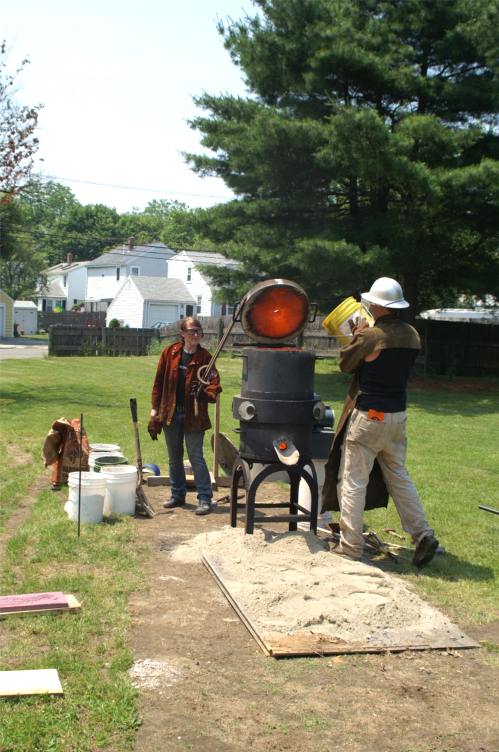

PICT0091.JPG (72868 bytes)  Here the cupola is being charged with some of the ingredients that make up a melt.

PICT0092.JPG (72340 bytes)  I didn't realize until I was processing these photos that the cupola had this humorous appearance.

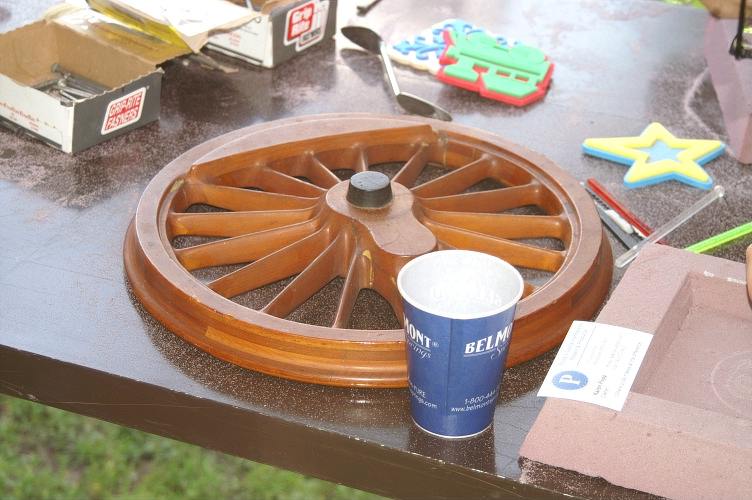

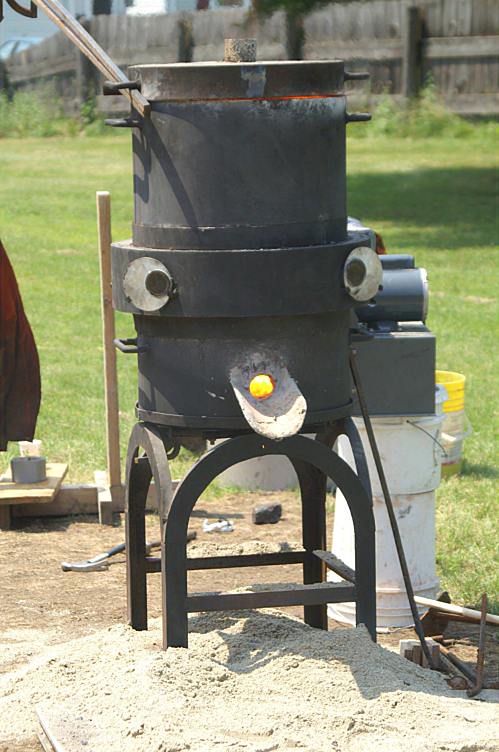

PICT0094.JPG (63493 bytes)  PICT0096.JPG (58951 bytes)  PICT0098.JPG (62194 bytes)  PICT0097.JPG (62574 bytes)

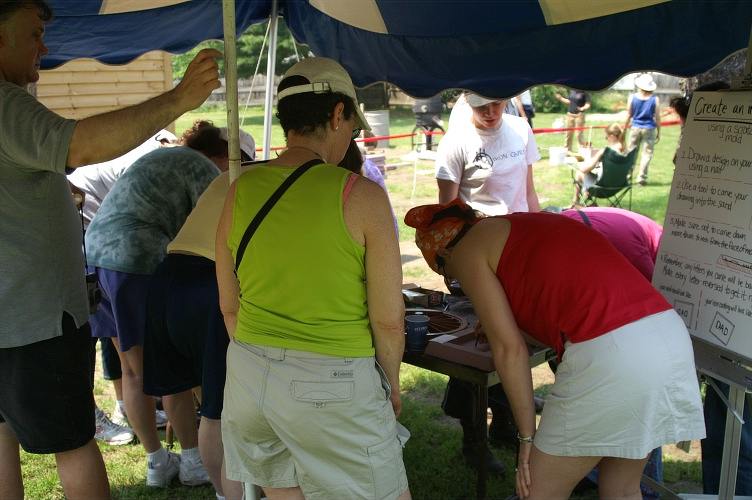

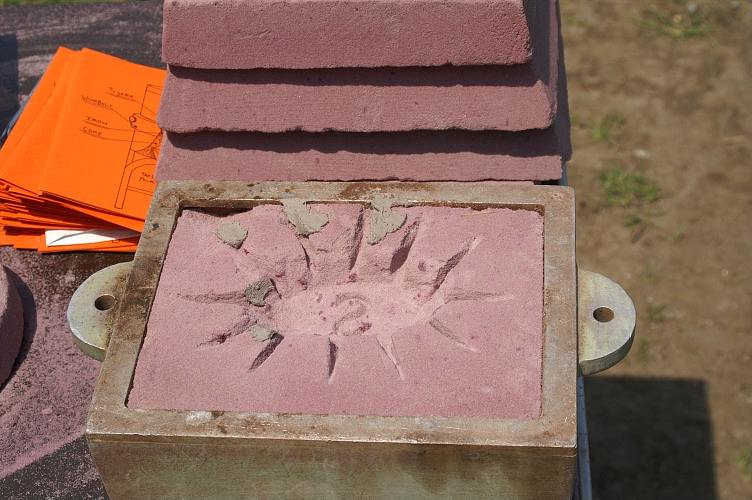

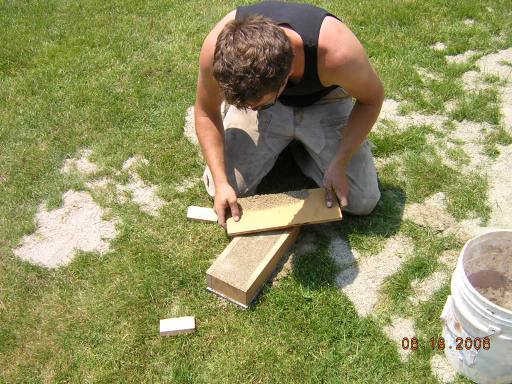

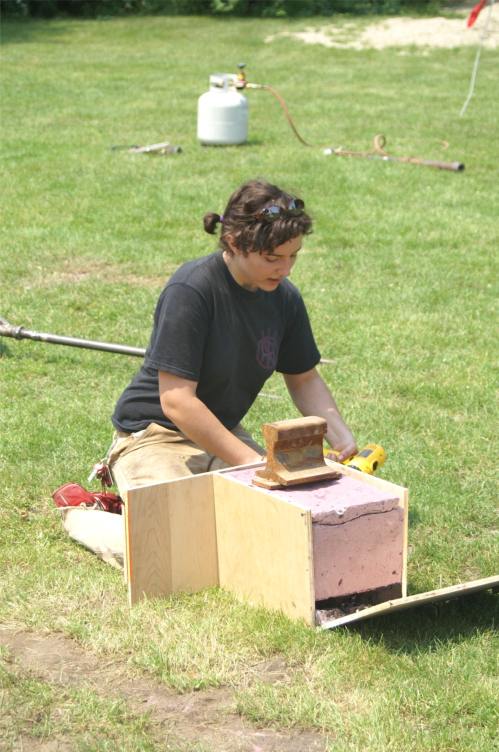

Today's molding took place for the most part in scratch molds.  Blanks were prepared before hand and those in attendance could scratch or carve a design into the mold.

PICT0099.JPG (68027 bytes) PICT0100.JPG (90148 bytes) PICT0101.JPG (86375 bytes) PICT0102.JPG (60211 bytes)

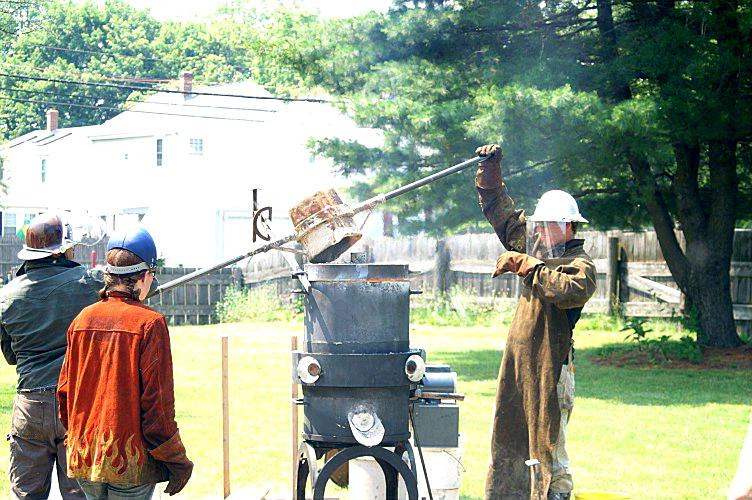

 PICT0103.JPG (94562 bytes)  The crucible is placed atop the cupola to pre-heat.  All moisture must be driven off from the crucible since any moisture can flash to steam when the iron is tapped into it causing a dangerous explosion.

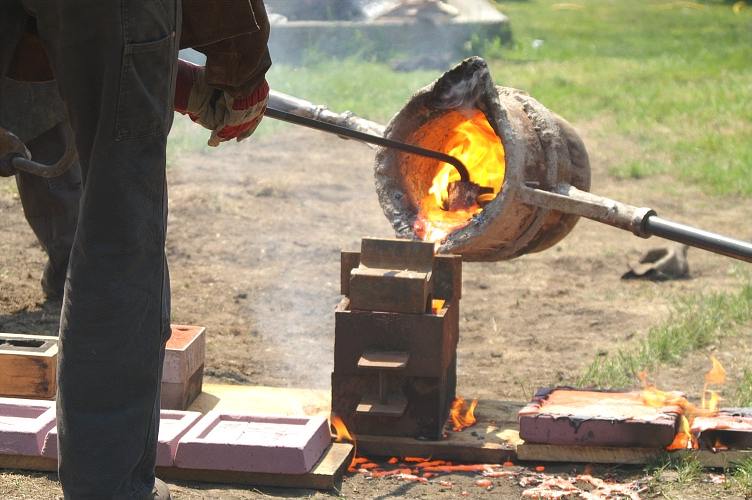

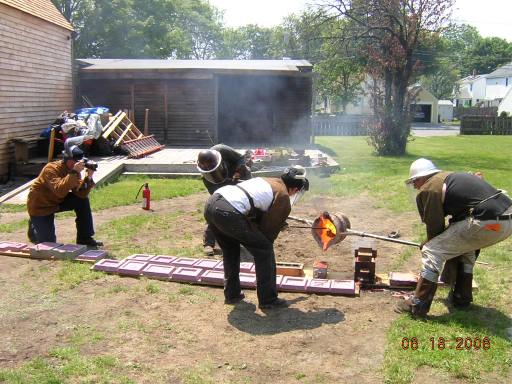

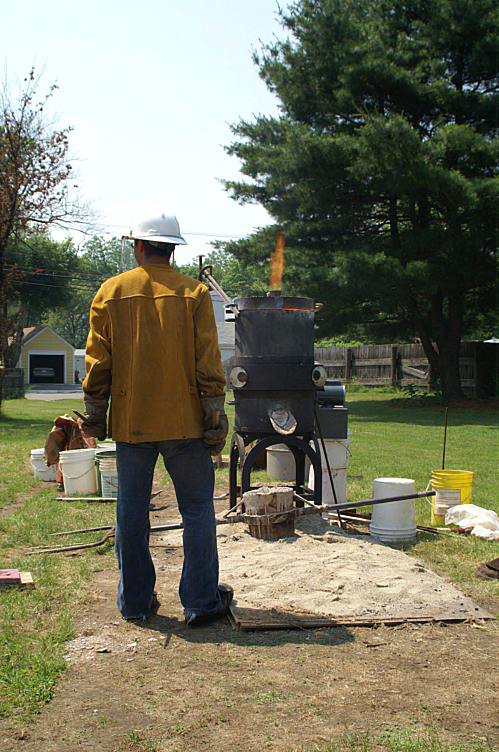

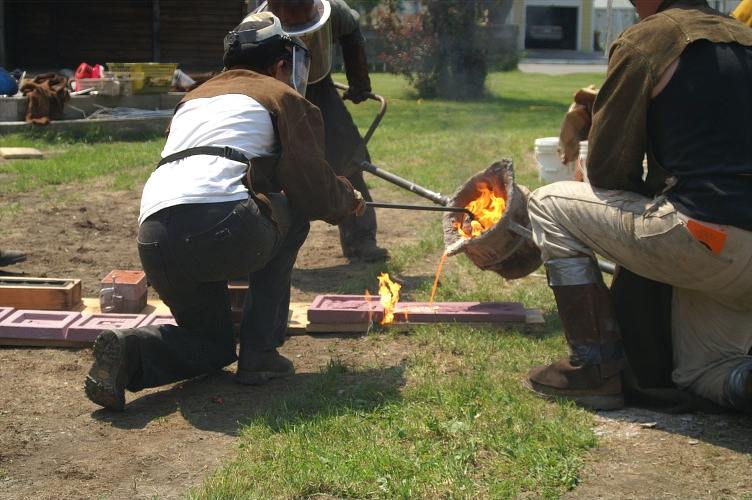

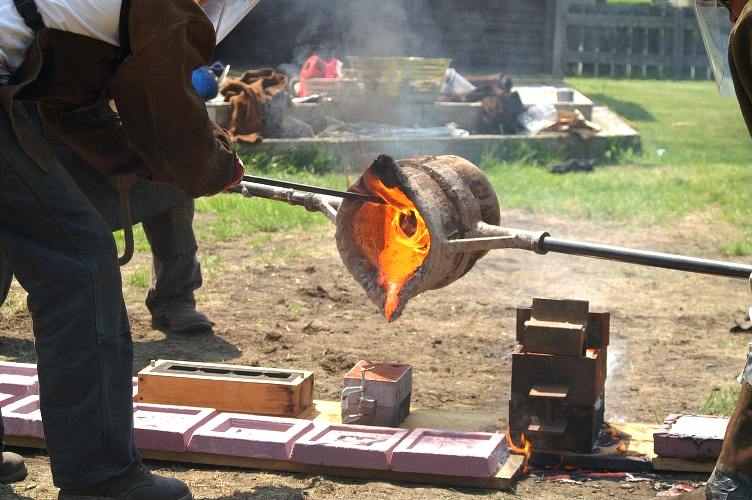

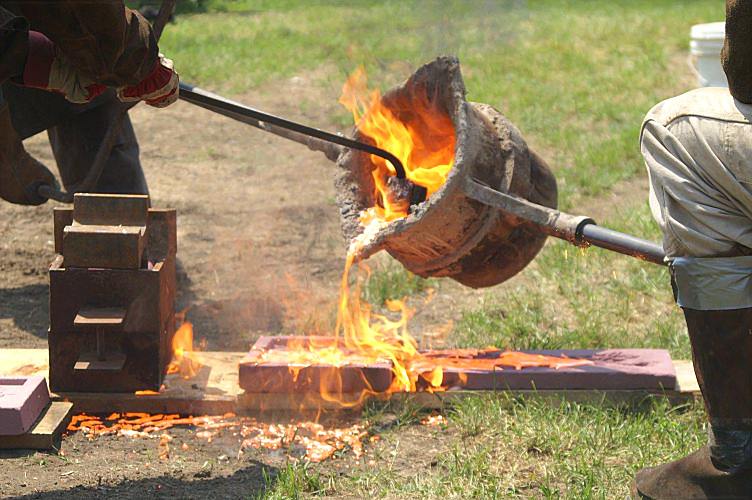

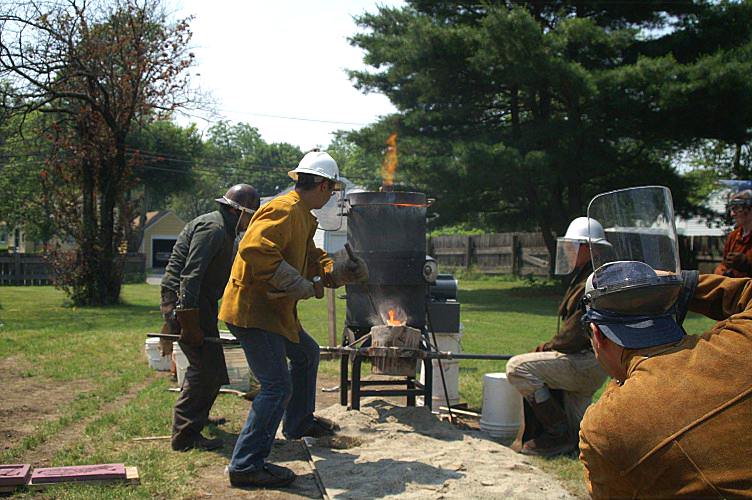

PICT0104.JPG (70026 bytes) PICT0105.JPG (83425 bytes) PICT0106.JPG (81894 bytes)  The molten iron is held in the cupola by a clay plug.  When the molten iron reaches proper temperature for pouring the clay plug is tapped our.  When the liquid iron is drained from the cupola an new plug is inserted and the process repeats.

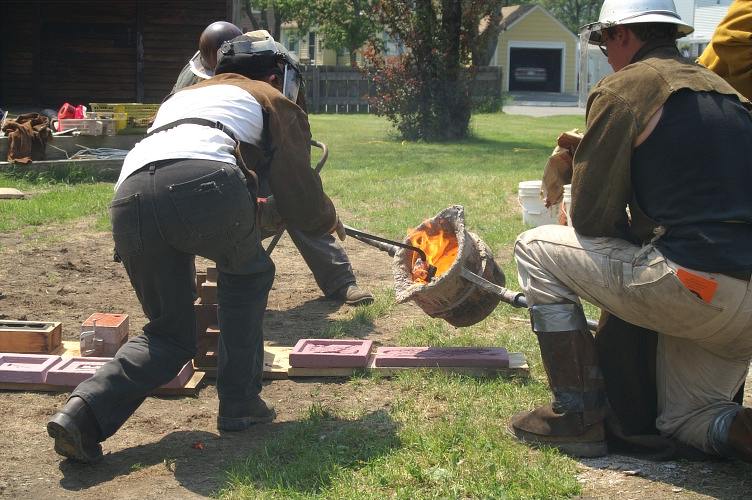

PICT0107.JPG (80296 bytes)  PICT0108.JPG (56578 bytes) PICT0109.JPG (67553 bytes) PICT0111.JPG (80306 bytes) PICT0112.JPG (70541 bytes)

PICT0113.JPG (77079 bytes) PICT0114.JPG (99610 bytes) PICT0115.JPG (87739 bytes) PICT0116.JPG (60997 bytes) PICT0118.JPG (69559 bytes) PICT0117.JPG (72421 bytes)

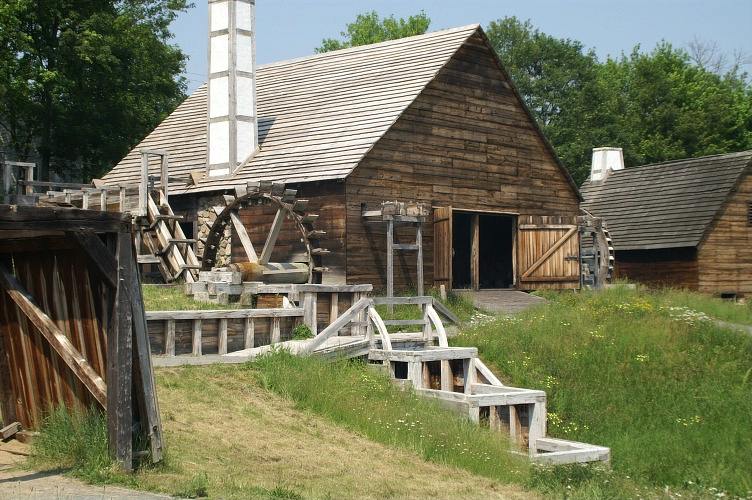

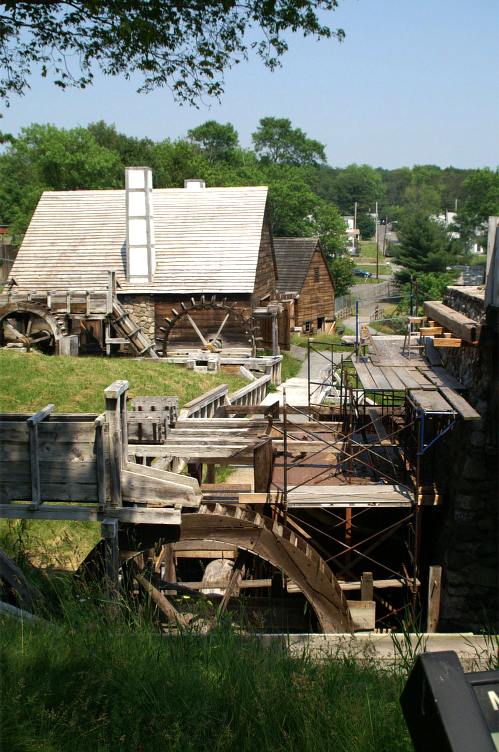

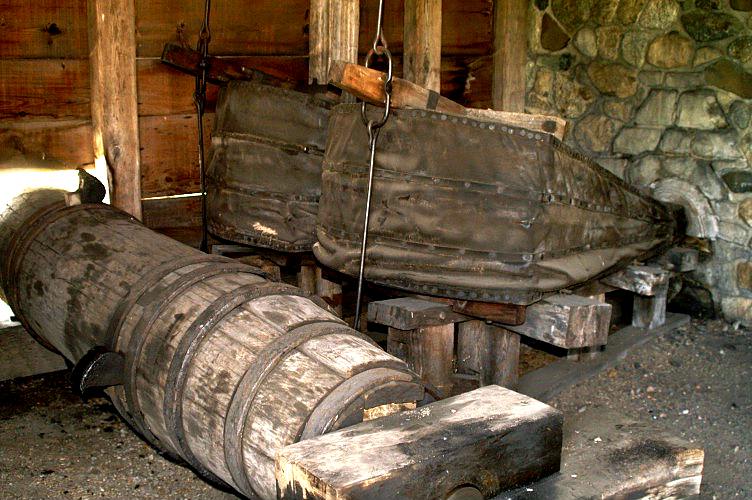

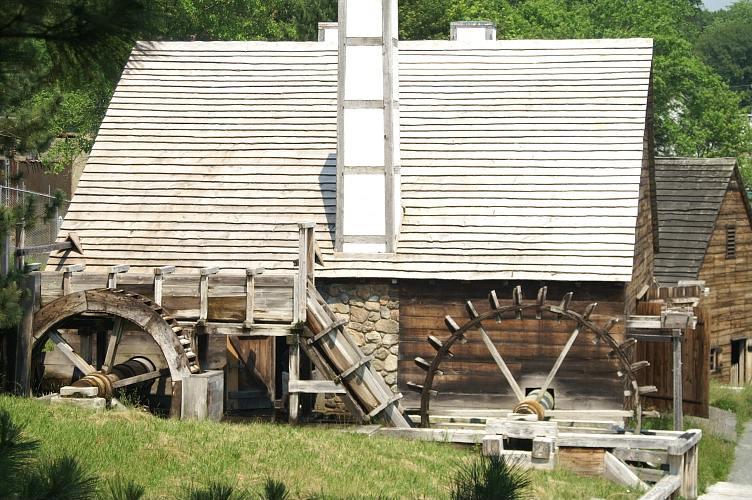

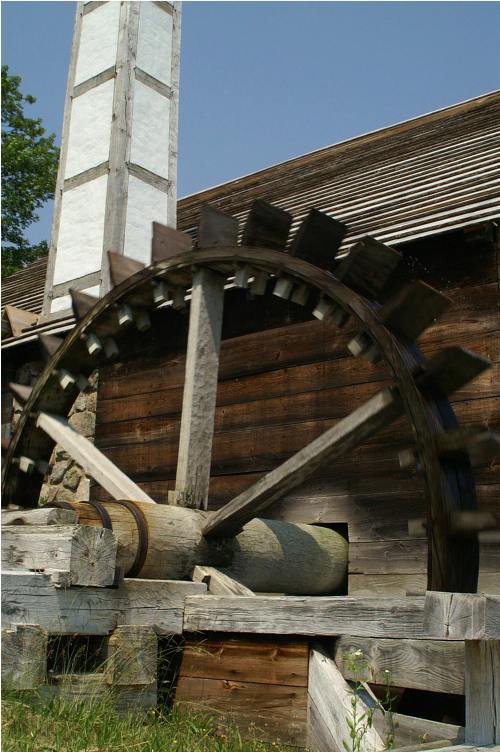

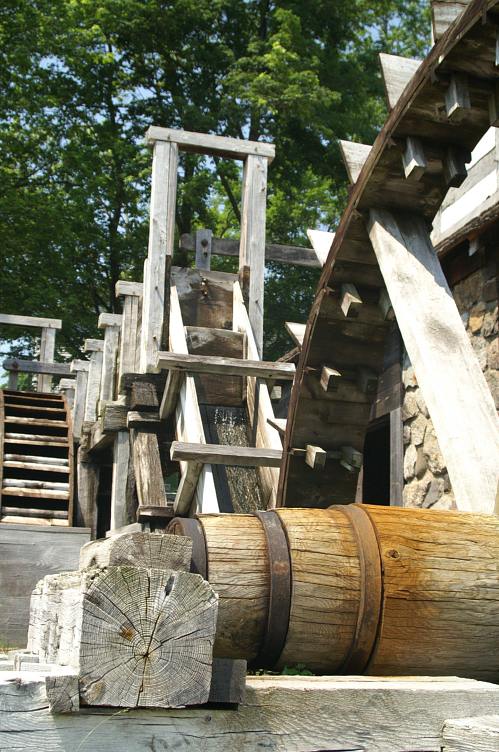

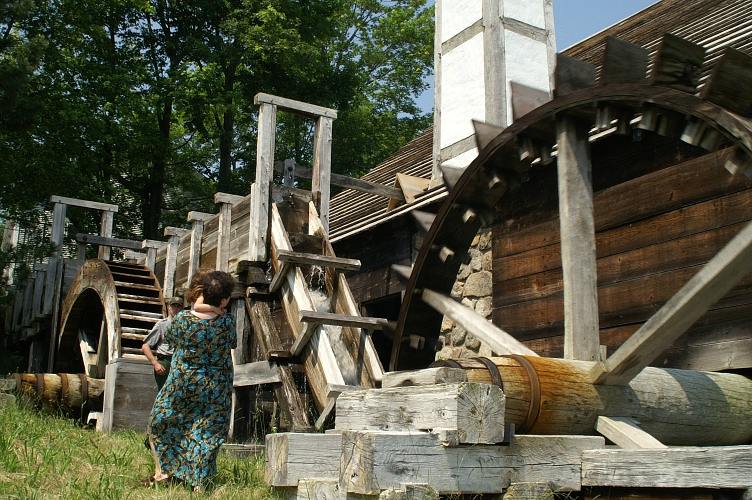

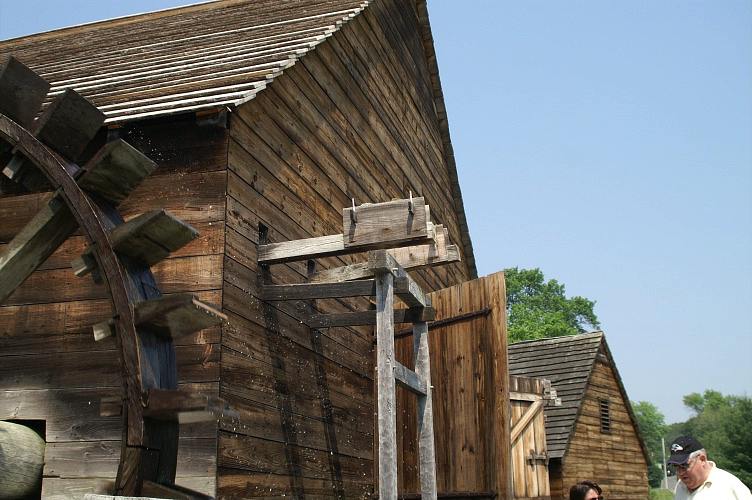

After watching the first pour I went off to look at the rest of the park.  The Iron works is a recreation of the original site.

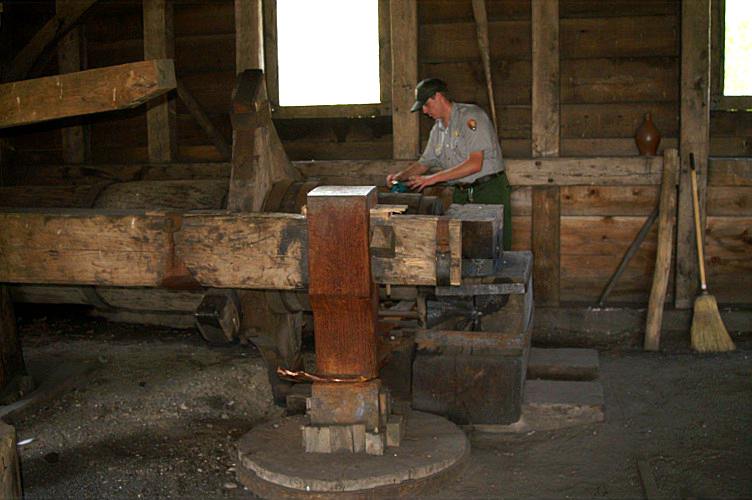

 PICT0120.JPG (86374 bytes) PICT0121.JPG (62481 bytes)   PICT0124.JPG (91760 bytes) PICT0122.JPG (100205 bytes) PICT0123.JPG (93778 bytes)

  PICT0128.JPG (69930 bytes) PICT0129.JPG (100567 bytes) PICT0130.JPG (69746 bytes) PICT0127.JPG (88464 bytes)


20 June 2006 Update

Just received these photos from Bill Brackett.  Bill returned to the Iron Works on Sunday hoping that he could get a mold poured with the Charles River Museum of Industry ingot pattern but unfortunately although two pours were made on that day the supply of cast iron ran out before Bill's mold was poured.





A round up the usual suspects!

PICT0135.JPG (79306 bytes) PICT0136.JPG (79098 bytes) PICT0137.JPG (69693 bytes) PICT0138.JPG (63645 bytes)

A goodly number or NEMES members were there.  From left to right are Rich Koolish, Vic Kozakvich, Les Russell, Sue Brackett (holding the camera), Mrs. and Norm Jones, Bill Brackett (rear), Rich Puleo, Errol Groff, Frank Stauffer, and last but not least our new club president Dick Boucher and his wife.   This photo taken by Terri Groff
